Motorsport Steering Knuckle Kit - 1988 Pontiac Fiero - 5x120 - Pair

Product Details

COMING SOON

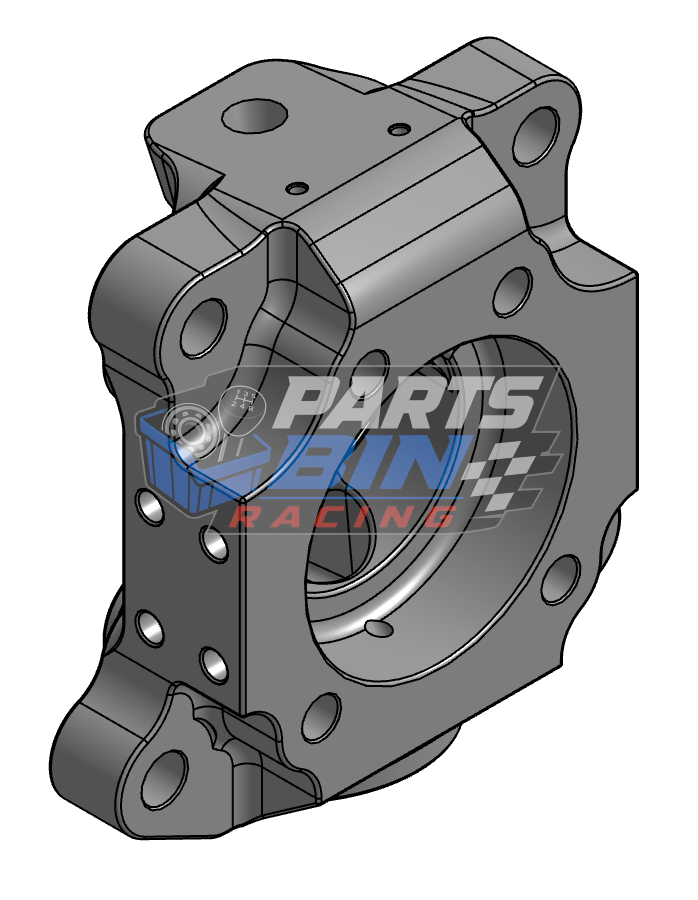

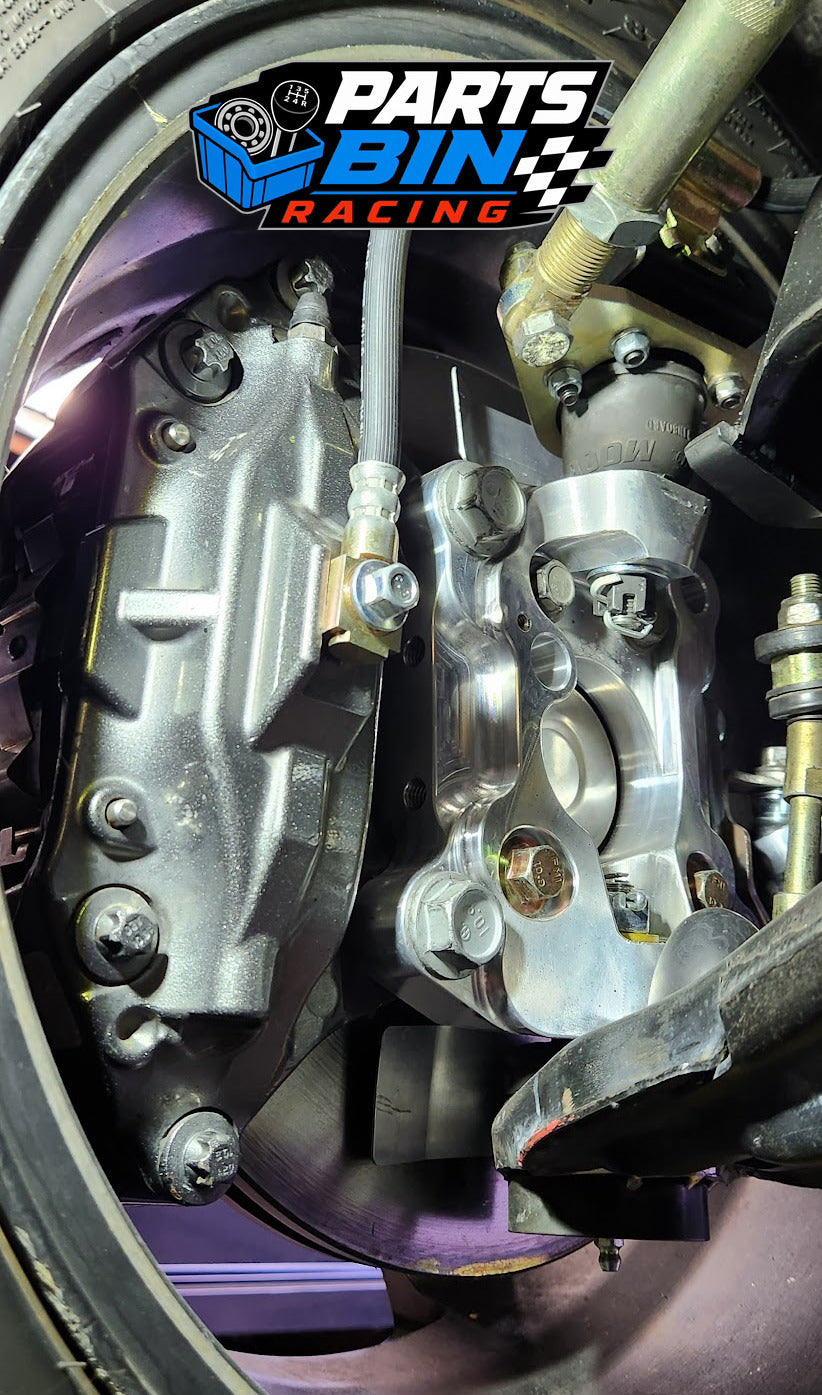

This is a CNC-machined aluminum front knuckle for race cars based on the 1988 Pontiac Fiero. It solves the problem of wheel bearing failures when driven on the track. This bespoke steering knuckle utilizes a heavy duty wheel bearing that holds up under track use with racing slicks and high downforce. The ball joints are also upgraded to heavy-duty units for increased strength and durability. Furthermore, the stock single-piston sliding calipers are replaced with larger 4-piston or 6-piston Brembo calipers with 12.6" to 14.6" brake rotors.

This front knuckle fits ONLY the 1988 Fiero. It does NOT fit 1984-1987 Fieros.

Installation of this part requires the Mixed Surface Heavy Duty Control Arms Kits (both upper and lower) and 5x120 wheels. It may also require the use of a larger master cylinder depending on your braking system.

Includes:

• 2x aluminum front steering knuckles
• 2x steel lower ball joint inserts
• 1x left steering arm
• 1x right steering arm
• 8x steering arm screws
• 2x upper ball joint heat shield
• 2x lower ball joint heat shield
• 8x heat shield screws

• 2x steering arm rod end bolts, nuts, and washers
• 2x upper ball joints (Moog K6346)
• 2x lower ball joints (Moog K6145T)
• 2x lower ball joint washers
• 2x 5/8 steering rod ends
• 2x 5/8 to M14 steering rod end adapters and jam nuts
• 2x rod end spacer sets
• 8x wheel bearing bolts
• 2x caliper bolts
• 2x banjo bolts and copper crush washers

Required parts NOT INCLUDED:

• 5x120 wheels with 67.1mm center bore (recommended size: 18x8 with 35mm to 40mm offset)
• Mixed Surface Heavy Duty Lower Control Arms with K6145 sleeves
• Mixed Surface Adjustable Upper Control Arms with K6346 Plate

• New 1988 Fiero OE brake hoses (except for 14.6" brakes)
• Brake components (not included), pick a size:
